Description

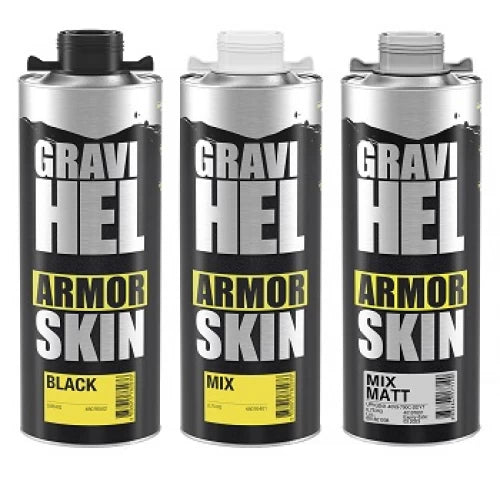

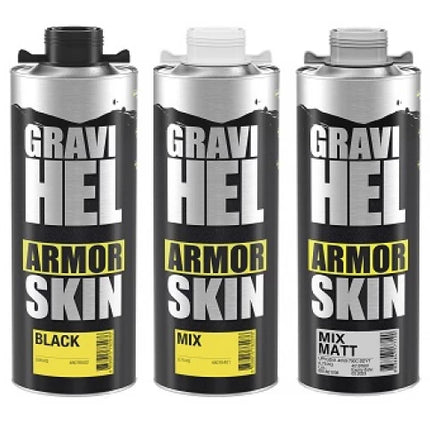

GRAVIHEL Armorskin - available in black and toned version in matt and semi-gloss finishes - Provide tone in order details in checkout (i.e. BMW A08, RAL 7016, NCS S9000-n, etc.).
Two-component single-layer structure coating. Protects surfaces with extreme weather, chemical, UV, and mechanical resistance. Perfect for industrial use requiring high durability.
-
Finishes: Available in semi-gloss and matt.
-
Uses: Protects construction and agricultural machinery, rail vehicles, steel structures, passenger cars, coating for outdoor vehicles, SUVs, and commercial vehicles (vans, trucks, campers).
-

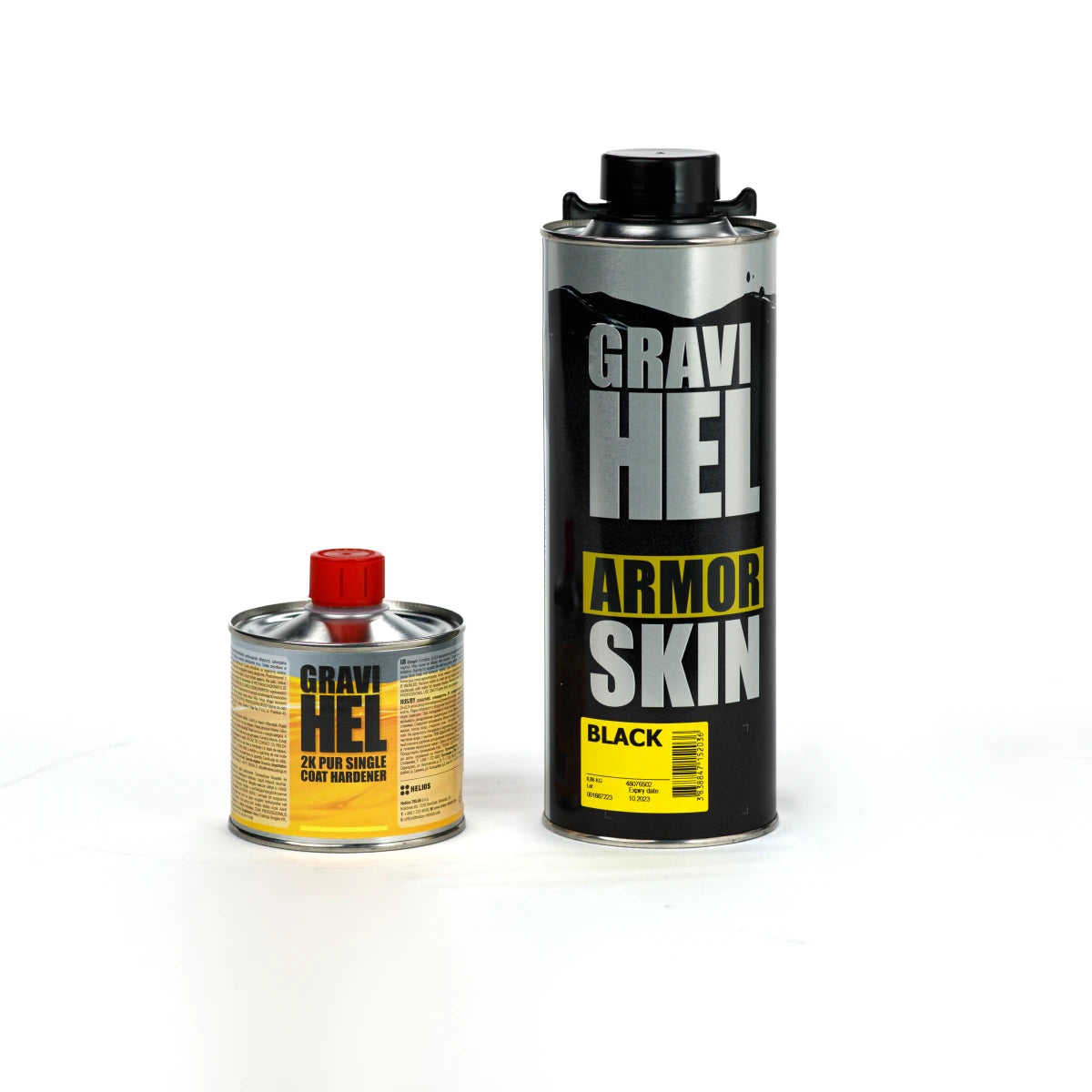

Kit size: 750ml package plus toner, with a 150ml hardener (1:5 mixing ratio).
Surface preparation
-
Iron and Steel: Sand with P280 to P600; Clean and degrease.
-
Zinc (Galvanized Steel): Sand with P280 to P600; Clean and degrease.
-
Aluminum: Sand with P280 to P600; Clean and degrease.
-
Wood: Sand with P280 to P600 grit paper, then degrease.
-
Plastic: Sand with P600 grit paper, then degrease.
Application instructions
-
Spray gun nozzle: 1.5 – 1.8 mm
-
Air pressure: 2 – 3 bar
-
Number of layers: 2-3 coats (more if not evenly covered)
-
Final thickness: 100 µm
-
Leave on surface between coats: 15 minutes flash-off time at 20°C
Drying times
| Drying Stage |
Object Temperature at 20°C |
Object Temperature at 60°C |
| Powder dry |
30 minutes |
— |
| Dry to touch |
5 hours |
— |
| Dry to assembly |
8 – 10 hours |
30 minutes + 1 hour at 20°C |
| Through dry |
24 hours |
30 minutes + 3 hours at 20°C |
